This is a post in a series of “stream-of-study” content where I post loosely-structured notes taken while labbing various scenarios and technologies.
!-----------------!

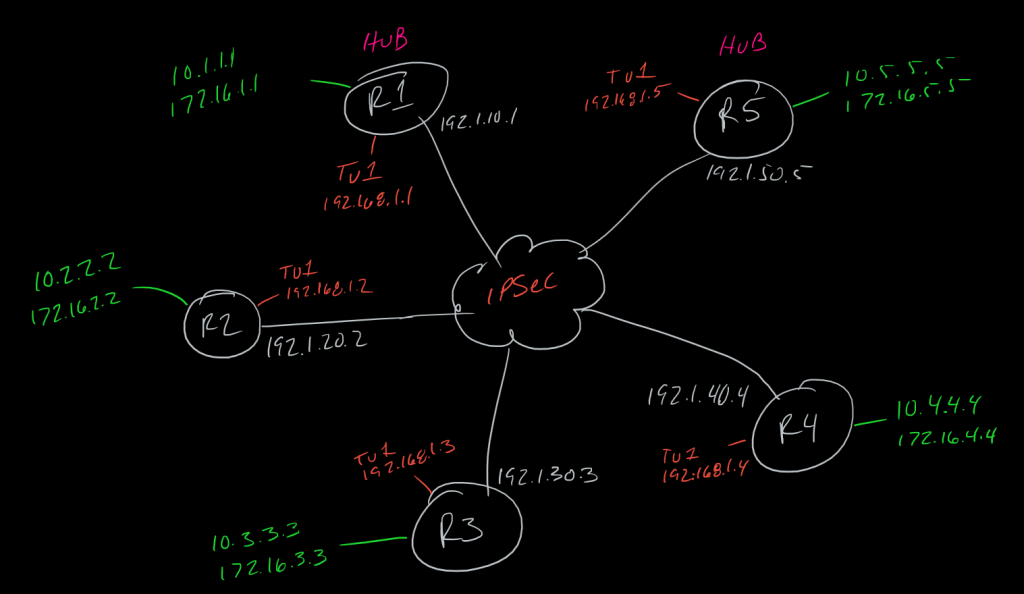

! DMVPN Phase I !
!-----------------!
! Hub (R1) !
!-----------------!
!
!
cry isakmp policy 5
hash sha256
authen pre-share
group 19
encry aes 256
!
cry isakmp key P@ssw0rd! address 0.0.0.0
!
cry ipsec transform-set DMVPN-TFS esp-aes 256 esp-sha-hmac
mode transport
!
cry ipsec profile DMVPN-IPSec
set transform-set DMVPN-TFS
!
int tu1
ip add 192.168.1.1 255.255.255.0
tunnel source 192.1.10.1
tunnel mode gre multipoint
ip nhrp network-id 1
ip nhrp map multicast dynamic
tunnel protection ipsec profile DMVPN-IPSec
!
router eigrp 100
network 192.168.1.0 0.0.0.255
network 10.0.0.0
network 172.16.0.0
!
int tu1
no ip split-horizon eigrp 100
!
!
!--------------------!
! Spokes (R2-R4) !
!--------------------!
!
cry isakmp policy 5
hash sha256
authen pre-share
group 19
encry aes 256
!
cry isakmp key P@ssw0rd! address 0.0.0.0
!
cry ipsec transform-set DMVPN-TFS esp-aes 256 esp-sha-hmac
mode transport
!
cry ipsec profile DMVPN-IPSec
set transform-set DMVPN-TFS
!
int tu1
ip add 192.168.1.x 255.255.255.0
tunnel source eth0/0
tunnel mode gre multipoint
ip nhrp network-id 1
ip nhrp map multicast 192.1.10.1
ip nhrp map 192.168.1.1 192.1.10.1
ip nhrp nhs 192.168.1.1
tunnel protection ipsec profile DMVPN-IPSec
!
router eigrp 100
network 192.168.1.0 0.0.0.255
network 10.0.0.0
network 172.16.0.0
!
!
!-----------------!
! Phase II !
!-----------------!
! Hub (R1) !
!-----------------!
!
int tu1
no ip next-hop-self eigrp 100
!
!-----------------!
! Phase III !
!-----------------!
! Hub (R1) !
!-----------------!
!
int tu1
ip next-hop-self eigrp 100
ip nhrp redirect
!ip summary-address eigrp 100 172.16.0.0/16
!
!---------------------!
! Spokes (R2-R4) !
!---------------------!
!
int tu1
ip nhrp shortcut
!
!
!--------------------------------!
! Adding a secondary Hub (R5) !
!--------------------------------!
!
!-----------------!
! Hub 2 (R5) !
!-----------------!
!
cry isakmp policy 5
hash sha256
authen pre-share
group 19
encry aes 256
!
cry isakmp key P@ssw0rd! address 0.0.0.0
!
cry ipsec transform-set DMVPN-TFS esp-aes 256 esp-sha-hmac
mode transport
!
cry ipsec profile DMVPN-IPSec
set transform-set DMVPN-TFS
!
int tu1
ip add 192.168.1.6 255.255.255.0
tunnel source 192.1.50.5
tunnel mode gre multipoint
ip nhrp network-id 1
ip nhrp map multicast dynamic
ip nhrp map multicast 192.1.10.1
ip nhrp map 192.168.1.1 192.1.10.1
ip nhrp redirect
tunnel protection ipsec profile DMVPN-IPSec
!
router eigrp 100
network 192.168.1.0 0.0.0.255
network 10.0.0.0
network 172.16.0.0
!
int tu1
no ip split-horizon eigrp 100
!ip summary-address eigrp 100 172.16.0.0/16
!
!----------------------------!
! R1 (Original Hub) !
!----------------------------!
!
int tu1
ip nhrp map 192.168.1.6 192.1.50.5
ip nhrp map multicast 192.1.50.5
!
!---------------------!
! Spokes (R2-R4) !
!---------------------!
!
int tu1
ip nhrp map multicast 192.1.50.5
ip nhrp map 192.168.1.6 192.1.50.5
ip nhrp nhs 192.168.1.6
!
!
!-----------------------------!
! Verifications !
!-----------------------------!
!
show ip nhrp
show ip nhrp shortcut
shpw ip route
show ip cef
show adjacency
show ip eigrp ne
show cry isakmp sa [detail]
show cry ipsec sa [detail]
